Logika 5000 Single Glazed Office Partitioning
1 of 4
Logika 5000 Single Glazed Office Partitioning

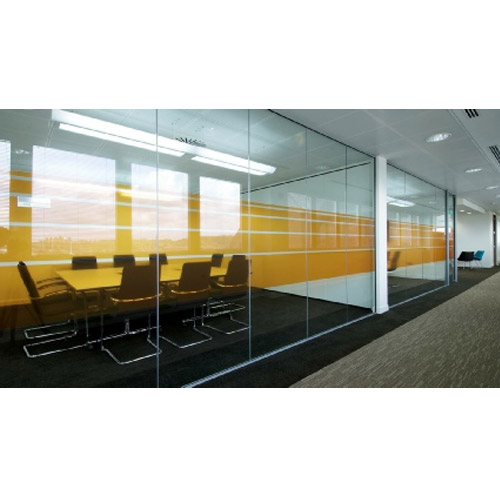

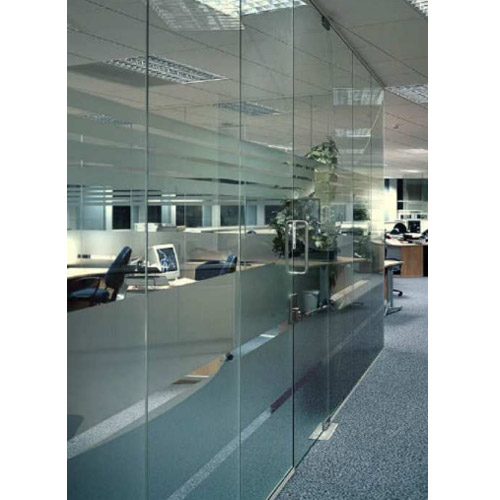

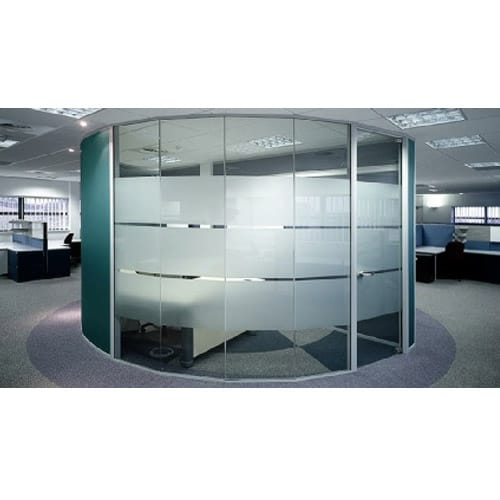

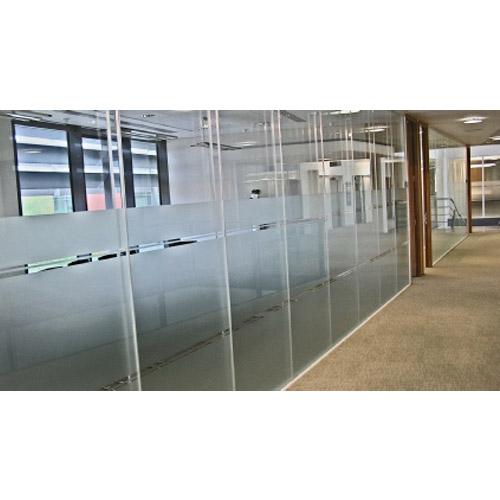

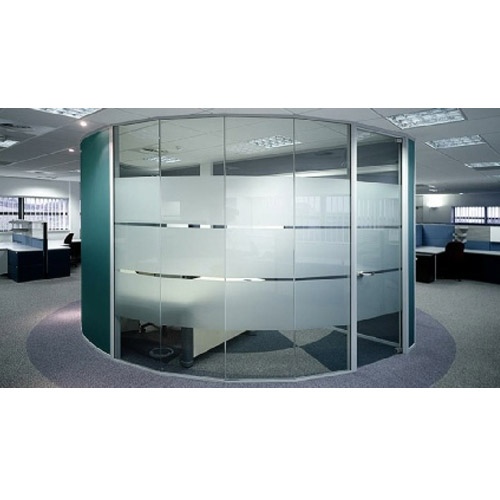

The Logika 5000 Office Partitioning System creates a modern office work space with the benefit of natural light and can be used in both facetted and curved configurations to provide a modern work environment with maximum natural light. The simple design of the glazing system provides a range of profiles designed to achieve even complex layouts, simply. The Logika 5000 single glazing partitioning is used in standard glazing layouts provides a modern working environment. The design allows for maximum light with a visual link to the open plan area whilst offering a secluded work space. All facets are pre-welded offsite ensuring simple and efficient installation with improved long-term structural stability. The door in this design is frameless which provides security to the enclosed area without comprising the clean, frameless appearance of the glass walls. The glass joints may be installed with silicone bond or with the patented "Spectra" dry-joint system for even greater de-mountability and flexibility. The unique patented "Spectra" design allows for a fully 'clear' ghost post frame within a dry-joint assembly. This provides glazing with a clear and almost flush aspect and is ideal for applications requiring a higher acoustic performance than traditional silicone glazed designs by using more economical 6mm and 6.4mm glass combinations. By using combination glass types the glazing can provide 42dB sound reduction. This range is fully compatible with Logika 3000 Single Glazed Office Partitioning and offers a range of Slimline “frameless” single glazing components and a unique double glazed option utilising a transparent ghost post which optimises acoustic performance.
The Logika 5000 Office Partitioning System creates a modern office work space with the benefit of natural light and can be used in both facetted and curved configurations to provide a modern work environment with maximum natural light. The simple design of the glazing system provides a range of profiles designed to achieve even complex layouts, simply. The Logika 5000 single glazing partitioning is used in standard glazing layouts provides a modern working environment. The design allows for maximum light with a visual link to the open plan area whilst offering a secluded work space. All facets are pre-welded offsite ensuring simple and efficient installation with improved long-term structural stability. The door in this design is frameless which provides security to the enclosed area without comprising the clean, frameless appearance of the glass walls. The glass joints may be installed with silicone bond or with the patented "Spectra" dry-joint system for even greater de-mountability and flexibility. The unique patented "Spectra" design allows for a fully 'clear' ghost post frame within a dry-joint assembly. This provides glazing with a clear and almost flush aspect and is ideal for applications requiring a higher acoustic performance than traditional silicone glazed designs by using more economical 6mm and 6.4mm glass combinations. By using combination glass types the glazing can provide 42dB sound reduction. This range is fully compatible with Logika 3000 Single Glazed Office Partitioning and offers a range of Slimline “frameless” single glazing components and a unique double glazed option utilising a transparent ghost post which optimises acoustic performance.
Features of the Logika 5000 Single Glazed Office Partitioning System:
• Slimline aluminium profiles
• Both 10mm and 12mm glass
• Facetted and curved configurations
• 'Clear' ghost post enables double glazed option with better acoustic performance
• Silicone and "dry-joint" glazing options
• Full range of framed or frameless glass and Manet sliding doors.
 |
Need shopping assistance? |
Product Specification
- Product Code
- H44067171
- Brand
- Logika
Product Details
- Logika 5000 Single Glazed Office Partitioning
Logika 5000 Single Glazed Office Partitioning
The Logika 5000 Office Partitioning System creates a modern office work space with the benefit of natural light and can be used in both facetted and curved configurations to provide a modern work environment with maximum natural light. The simple design of the glazing system provides a range of profiles designed to achieve even complex layouts, simply. The Logika 5000 single glazing partitioning is used in standard glazing layouts provides a modern working environment. The design allows for maximum light with a visual link to the open plan area whilst offering a secluded work space. All facets are pre-welded offsite ensuring simple and efficient installation with improved long-term structural stability. The door in this design is frameless which provides security to the enclosed area without comprising the clean, frameless appearance of the glass walls. The glass joints may be installed with silicone bond or with the patented "Spectra" dry-joint system for even greater de-mountability and flexibility. The unique patented "Spectra" design allows for a fully 'clear' ghost post frame within a dry-joint assembly. This provides glazing with a clear and almost flush aspect and is ideal for applications requiring a higher acoustic performance than traditional silicone glazed designs by using more economical 6mm and 6.4mm glass combinations. By using combination glass types the glazing can provide 42dB sound reduction. This range is fully compatible with Logika 3000 Single Glazed Office Partitioning and offers a range of Slimline “frameless” single glazing components and a unique double glazed option utilising a transparent ghost post which optimises acoustic performance.
Features of the Logika 5000 Single Glazed Office Partitioning System:
• Slimline aluminium profiles
• Both 10mm and 12mm glass
• Facetted and curved configurations
• 'Clear' ghost post enables double glazed option with better acoustic performance
• Silicone and "dry-joint" glazing options
• Full range of framed or frameless glass and Manet sliding doors.
Logika 5000 System Specifications
• Single glazed 'frameless' 10 and 12mm glass silicone jointed:
Under BS5234 (Office Partitions) loading conditions:
Maximum height for 10mm safety glass is 2400mm
Maximum height for 12mm safety glass is 3050mm
Under BS6180 (Barrier) loading conditions:
Maximum height for 10mm safety glass is 2100mm
Maximum height for 12mm safety glass is 2500mm
• Single glazed 'frameless' 12mm glass with Spectra registered dry joint:
Under BS5234 (Office Partitions) loading conditions:
Maximum height for 12mm glass is 3050mm
• Double glazed framed (top and bottom edges with Spectra ghost post to BS5234) the following glass thicknesses can be used:
6mm toughened glass - maximum height is 2900mm
6.4mm laminated glass - maximum height is 2900mm
8mm toughened glass - maximum area 3 Sq.m
