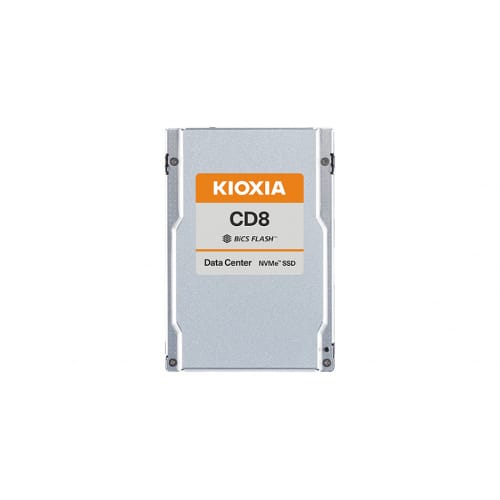

Kioxia CD8-R 2.5" 15.4 TB PCI Express 4.0 BiCS FLASH TLC NVMe
1 of 1
Price: £8,459.50 Ex VAT (£10,151.40 Inc VAT)
RRP: £11,768.44 (Save 14%)
Delivery:1-2 DaysDelivery & Return Info
- PCIe® 4.0, NVMe™ 1.4 specification compliant Help Modal Window
- Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
- Form factor: 2.5-inch, 15mm height Help Modal Window
- Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH™ 3D TLC Help Modal Window
- Single-port design, optimized for data center class workloads
- Consistent performance and reliability for demanding 24x7 environments
- Designed for high-density storage deployments
- Power loss protection (PLP) and end-to-end data correction
- Security options: SIE, SED
 |
Need shopping assistance? |
Frequently bought together
Product Specification
- Product Code
- H44511416
- Manufacturer Ref
- KCD8XRUG15T3
- Barcode
- 8592978457938
- Capacity
- 15.4TB
- Brand
- KIOXIA
- Hard Drive Type
- Internal
- Interface
- PCI Express
Product Details
- Kioxia CD8-R 2.5" 15.4 TB PCI Express 4.0 BiCS FLASH TLC NVMe
Data Center NVMe Read-intensive SSD
The CD8-R Series is a read-intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe® 4.0 (16 GT/s x4) interface, CD8-R Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 200K IOPS (random write).
Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, CD8-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.
The CD8-R Series is a read-intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe® 4.0 (16 GT/s x4) interface, CD8-R Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 200K IOPS (random write).
Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, CD8-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.
Specifications
| Features | |
|---|---|
| NVMe version | 1.4 |
| SSD form factor | 2.5" |
| SSD capacity | 15.4 TB |
| Interface | PCI Express 4.0 |
| Memory type | BiCS FLASH TLC |
| NVMe | Yes |
| Component for | Server/workstation |
| Read speed | 6600 MB/s |
| Write speed | 6000 MB/s |
| Random read (4KB) | 1050000 IOPS |
| Random write (4KB) | 195000 IOPS |
| PCI Express interface data lanes | x4 |
| Mean time between failures (MTBF) | 2500000 h |
| Power | |
| Operating voltage | 12 V |
| Power consumption (max) | 20 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 74 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Maximum operating temperature | 74 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating vibration | 2.17 G |
| Operating shock | 1000 G |
| Technical details | |
| Warranty period | 5 year(s) |
| Weight & dimensions | |
| Width | 69.8 mm |
| Depth | 100.5 mm |
| Height | 15 mm |
| Weight | 130 g |
