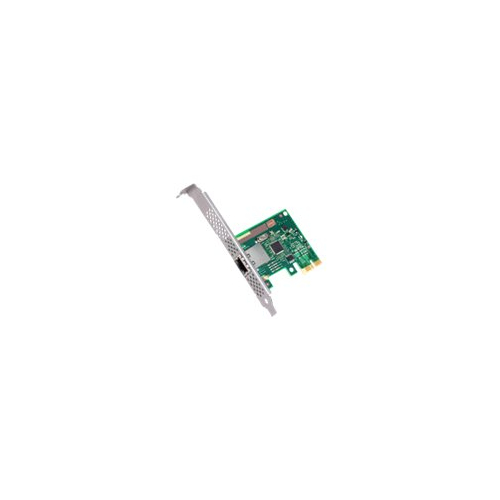

Intel Ethernet Server Adapter I210-T1 - Network adapter - PCIe 2.1 low profile - Gigabit Ethernet
1 of 1
Intel Ethernet Server Adapter I210-T1 - Network adapter - PCIe 2.1 low profile - Gigabit Ethernet
Price: £50.95 Ex VAT (£61.14 Inc VAT)
RRP: £68.34 (Save 11%)
Delivery:1-2 Days - In Stock UK WarehouseDelivery & Return Info
- Low-halogen single-port PCI-Express 10/100/1000 Ethernet adapter
- Power management features including Energy Efficient Ethernet (EEE), DMA Coalescing, ultra-compact design, and a unique ventilated bracket for increased efficiency and reduced power consumption
- IEEE 802.1Qav Audio-Video-Bridging (AVB) for tightly controlled media stream synchronization, buffering, and reservation
- High-performing design supporting PCI Express generation 2.1 2.5 GT/s
- Reliable and proven Gigabit Ethernet technology from Intel Corporation
 |
Need shopping assistance? |
Frequently bought together
Product Specification
- Product Code
- H44194071
- Manufacturer Ref
- I210T1BLK
- Barcode
- 0200002716323
- Type
- PCIe Expansion Card
- Brand
- Intel
Product Details
- Intel Ethernet Server Adapter I210-T1 - Network adapter - PCIe 2.1 low profile - Gigabit Ethernet
The Intel Ethernet Server Adapter I210 builds on Intel's history of excellence in Ethernet products. Intel continues its market leadership with this PCIe GbE network adapter. Based on the Intel Ethernet Controller I210, this adapter represents the next step in the Gigabit Ethernet (GbE) networking evolution for the enterprise and data center offering Audio-Video-Bridging (AVB) support, along with power management technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC).
- Audio-Video Bridging (AVB)
The Intel Ethernet Server Adapter I210 supports IEEE 802.1Qav Audio-Video Bridging (AVB) for customers requiring tightly controlled media stream synchronization, buffering, and reservation. The 802.1Qav is part of the AVB specification that provides a way to guarantee bounded latency and latency variation for time sensitive traffic. - Performance optimization
The Intel Ethernet Server Adapter I210 contains four transmit and four receive queues. These queues offer Error Correcting Memory (ECC) protection for improved data reliability. The adapter efficiently manages packets with minimum latency by combining parallel and pipelined logic architectures optimized for these independent transmit and receive queues. These queues, combined with Receive Side Scaling (RSS) and Message Signal Interrupt Extension (MSI-X) support, optimize the performance on servers with multi-core processors. - Power Management Technologies
Today, companies everywhere are looking for ways to decrease energy consumption across the enterprise to reduce costs and environmental impact, while at the same time solving increasingly important power density challenges. That's why Intel has introduced advanced Power Management Technologies (PMTs that enable enterprises to configure power options on the adapter and more effectively manage power consumption. - Environmentally friendly design
The Intel Ethernet Server Adapter I210 Family is low halogen and completely lead-free to reduce the potential for environmental impact. This, in combination with power management technologies, a unique ventilated bracket, and space-saving design make this adapter an ideal solution for compact workstations and entry-level servers.
Specifications
| General | |
|---|---|
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.1 x1 |
| PCI Specification Revision | PCIe 2.1 |
| Networking | |
| Ports | Gigabit Ethernet |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Data Transfer Rate | 1 Gbps |
| Network / Transport Protocol | TCP/IP, UDP/IP |
| Status Indicators | Port transmission speed, link/activity |
| Features | Flow control, auto-negotiation, Jumbo Frames support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1as |
| Processor / Memory | |
| Processor | 1 x I210 - Intel |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T - RJ-45 |
| Compatible Slots | 1 x PCI Express 2.1 x1 - low-profile |
| Miscellaneous | |
| Included Accessories | Low-profile bracket, full-height bracket |
| Compliant Standards | FCC Class B certified, UL, VCCI, C-Tick, BSMI, KCC |
| Package Type | Bulk |
| Power | |
| Power Consumption Operational | 0.81 Watt |
| Dimensions & Weight | |
| Width | 1.8 cm |
| Depth | 6.7 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
