Fusion Clear Single Glazed Partitioning System

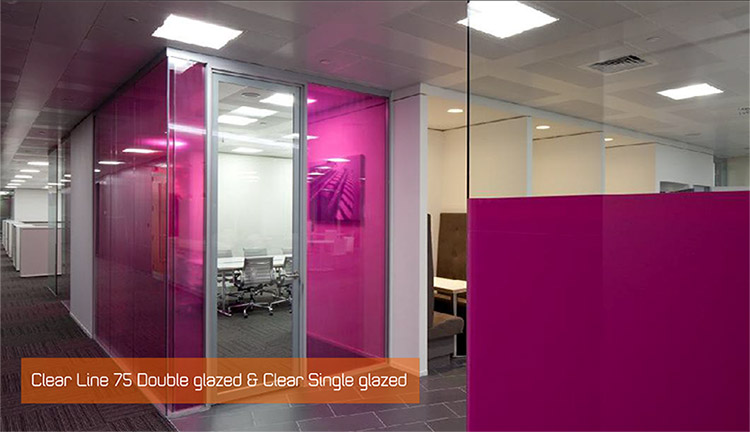

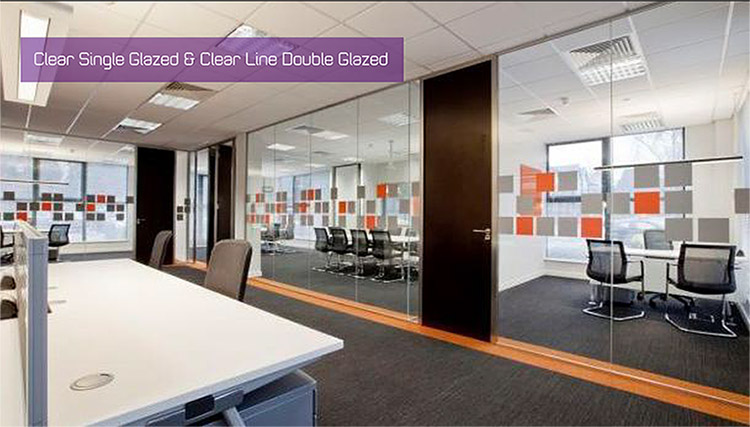

Fusion Clear is a single glazed system providing a minimal aluminium framework with a choice of doorframe options. Fusion Clear partitions is available in single and double glazed options. The dimensions of  both systems are identical which  ensures clean uninterrupted lines when using a mix of Fusion partitioning products.  Clear single glazed office partitions provide minimal, clean lines and the flexibility to integrate with a wide range of solid materials to glass options. The Clear Single Glazed partition system will also accept the Slimline, 75mm and 100mm range of fusion door frames, to satisfy a wide range of aesthetic and performance requirements. A choice of Dry-Joint or silicone is available. The Clear Single Glazed system provides a minimal aluminium framework with a choice of door frames to meet all design requirements The depth of the floor and ceiling sections is replicated within the Clear Double Glazed family of products to ensure clean uninterrupted lines when using a mix of Fusion products.

Framing Dimensions: 30mm aluminium slim head/abutment section for independent glazed screen and optional 86mm or 111mm head/abutment channels allow integration with 75mm and 100mm plasterboard partition walls.

Glazed Panels & Acoustic Performance

10mm Toughened glass - Rw 32dB
12mm Toughened glass - Rw 33dB
12.8mm Acoustic laminated glass - Rw 40dB

Deflection: Aluminium 2 part head assembly provides +/- 25mm for both the single glazed screen and the integrated plasterboard partition walls.

Integrated Junctions: Choice of wrap around or tapeable aluminium sections that enable the single glazed screen to be fully integrated with 75mm, 100mm and 122mm plasterboard partition walls

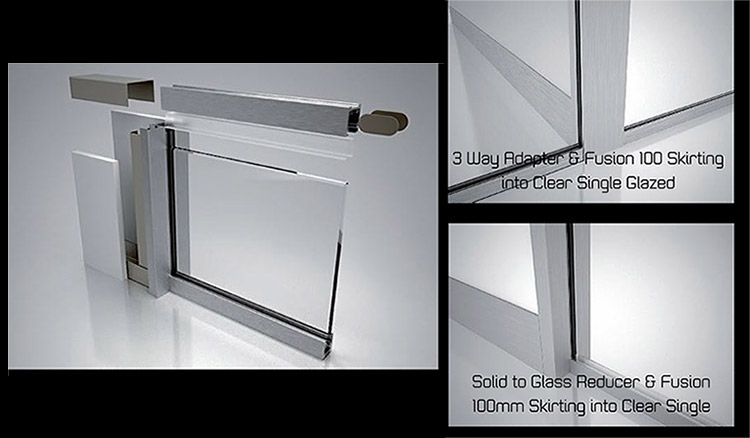

Glass Junctions: Straight, 90 degree, variable and 3 way dry joint glass to glass junctions with optional silicon glass joints and 3 way posts that accept plasterboard partition room dividing walls.

Colour Finishes : Anodised, Fusion satin stainless steel and polyester powder coated stock colours silver (RAL 9006) and white (RAL 9010). All other BS4800 and RAL colours available to order.

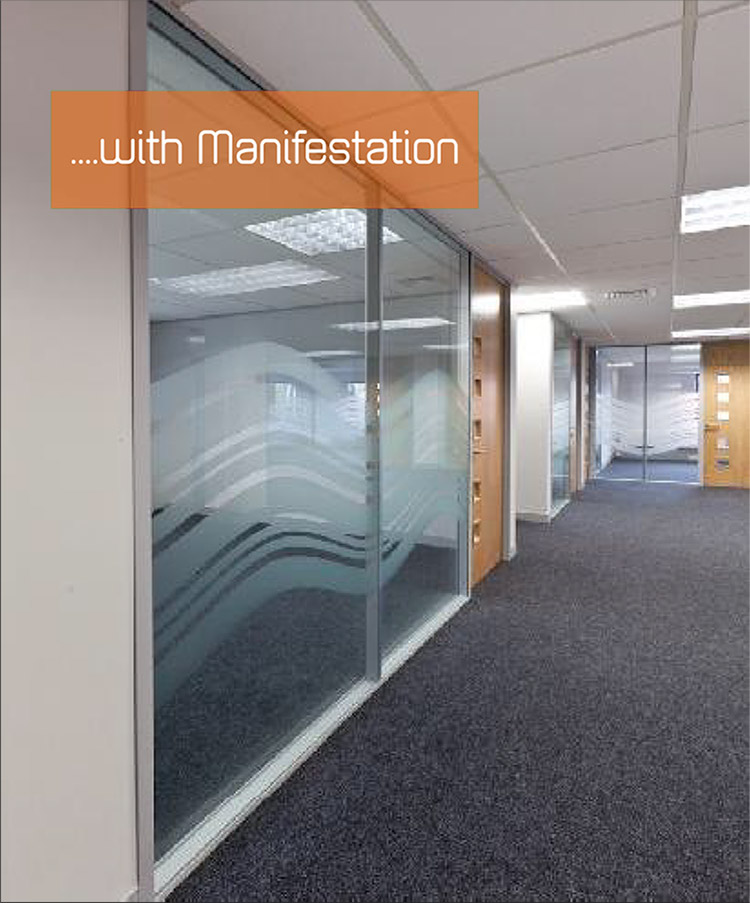

Manifestation: To meet the requirements of Part M of the building regulations (minimum 50mm dots @100mm centres) or to client’s specification using digital printed logos/graphics on film, screen printed or acid etched glass.

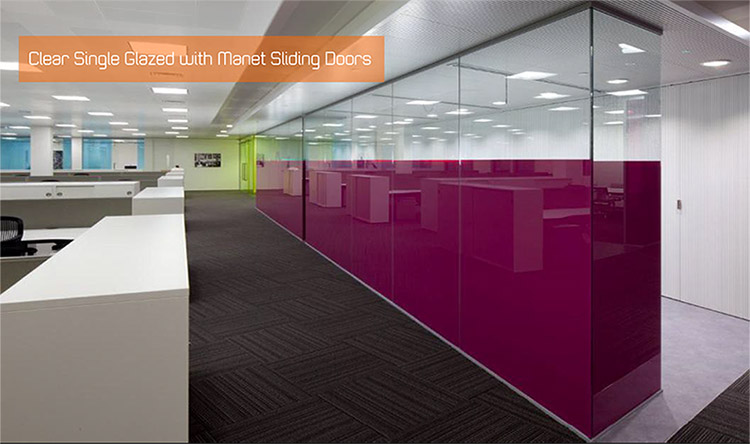

Door Leaf & Door Frames: Frameless glass, high acoustic performance Contemporary aluminium framed single or double glazed and veneered solid core doors installed in aluminium, natural timber or MDF veneered door frames. Other options include Manet or top hung sliding frameless glass doors.

Ironmongery: Range of offset top and bottom hinges, top and bottom pivots complete with floor springs (BTS75) complemented with stain or polished stainless steel finished lever sets, pull handles and patch locks.
