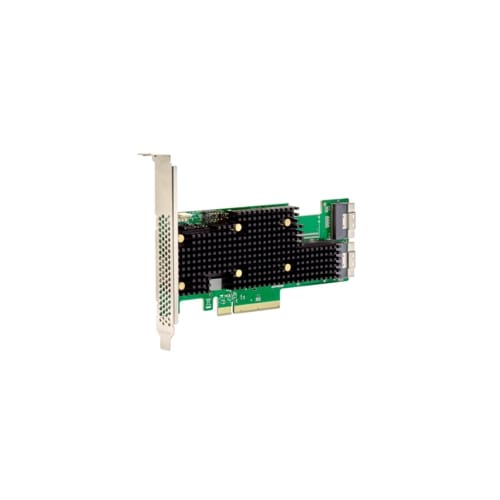

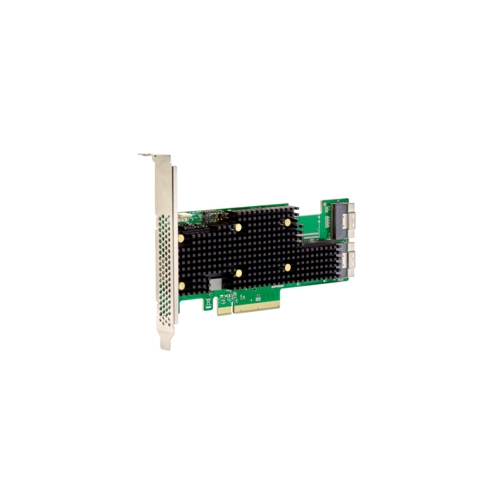

Broadcom eHBA 9620-16i interface cards/adapter Internal SAS, SATA
1 of 1
Price: £919.50 Ex VAT (£1,103.40 Inc VAT)
RRP: £1,190.75 (Save 7%)
Delivery:1-2 DaysDelivery & Return Info
- Low profile, half-length x8 PCIe Gen 4.0 adapter
- Connects up to 32 SAS/SATA devices or 32 NVMe devices
- RAID 0/1/10 with hot spare support
- Hardware Secure Boot and SPDM Attestation support
- SMART monitoring
- Driver temperature monitoring
- SafeStore key management for attached SEDs
- SFF-TA-1005 Universal Bay Management (UBM) Ready
 |
Need shopping assistance? |
Frequently bought together
Product Specification
- Product Code
- H44511786
- Manufacturer Ref
- 05-50111-02
- Barcode
- 0830343007714, 830343007714
- Type
- Storage Controller
- Brand
- Broadcom
Product Details
- Broadcom eHBA 9620-16i interface cards/adapter Internal SAS, SATA
The 9620-16i Tri-Mode, PCIe Gen 4.0 enhanced HBA (eHBA) is ideal for increased connectivity and maximum performance for enterprise data center flexibility.
With increased bandwidth and IOPS performance compared to previous generations, the 9620-16i eHBA delivers the performance and scalability needed by critical applications.
With increased bandwidth and IOPS performance compared to previous generations, the 9620-16i eHBA delivers the performance and scalability needed by critical applications.
Specifications
| Ports & interfaces | |
|---|---|
| Host interface | PCIe |
| Output interface | SAS, SATA |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCIe 4.0 |
| NVMe | Yes |
| Internal mini-SAS ports | 2 |
| Design | |
| Internal | Yes |
| Product colour | Black, Green, Silver |
| Mean time between failures (MTBF) | 5000000 h |
| Certification | Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020) |
| Features | |
| Data transfer rate (max) | 22.5 Gbit/s |
| S.M.A.R.T. support | Yes |
| RAID levels | 0, 1, 10 |
| Power | |
| Power consumption (typical) | 17 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | SUSE Linux Enterprise Server |
| Other operating systems supported | VMware vSphere ESXi |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | RoHS, WEEE |
| Warranty period | 3 year(s) |
| Weight & dimensions | |
| Width | 155.6 mm |
| Depth | 68.8 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Mounting brackets included | Yes |
