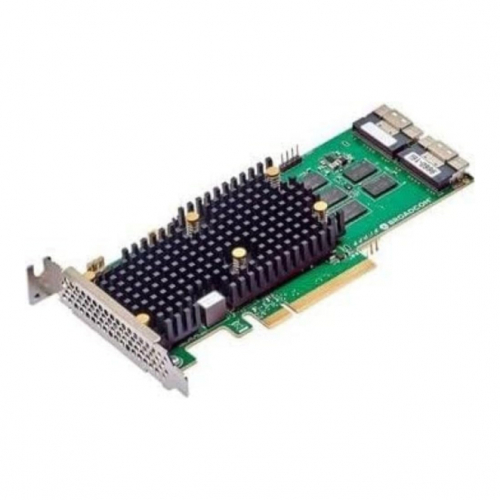

Broadcom 9660-16i interface cards/adapter Internal SAS, SATA, SFF-8654
1 of 1
Price: £2,199.50 Ex VAT (£2,639.40 Inc VAT)
RRP: £2,856.02 (Save 8%)
Delivery:3-5 DaysDelivery & Return Info
- Low profile, half-length x8 PCIe Gen 4.0 adapter
- Connect up to 240 SAS/SATA devices or 32 NVMe devices per controller
- SFF-8654 (SlimSAS) x8 connectors
- Form-factor friendly cable exit
- Hardware Secure Boot and SPDM Attestation support
- Balance protection and performance for critical applications with RAID 0, 1, 5, 6, 10, 50 and 60 and JBOD
- SFF-TA-1005 Universa Bay Management (UBM) Ready
- Add more protection and peace of mind with CacheVault flash cache protection
 |
Need shopping assistance? |
Frequently bought together
Product Specification
- Product Code
- H44511440
- Manufacturer Ref
- 05-50107-00
- Barcode
- 0830343007769, 830343007769
- Type
- Network Card
- Brand
- Broadcom
Product Details
- Broadcom 9660-16i interface cards/adapter Internal SAS, SATA, SFF-8654
The MegaRAID 9600 series is the third generation of Tri-Mode x8 and x16 NVMe/SAS/SATA storage adapters. Designed to deliver the best possible performance for NVMe SSD-based storage systems, the 9600 family delivers 2x the bandwidth, over 4x the IOPs, 25x reduction in write latency and 60x increase in performance during rebuilds over the previous generation.
The MegaRAID 9660-16i adapter, based on the SAS4116 RAID-on-Chip (RoC), is the highest performing x8 PCIe Gen 4.0 storage adapter available to meet the ever-increasing demands of the data center. The low power MegaRAID 9660-16i allows users to seamlessly transition their existing storage infrastructure to get breakthrough SSD performance with minimal airflow and cooling requirements.
The MegaRAID 9660-16i adapter, based on the SAS4116 RAID-on-Chip (RoC), is the highest performing x8 PCIe Gen 4.0 storage adapter available to meet the ever-increasing demands of the data center. The low power MegaRAID 9660-16i allows users to seamlessly transition their existing storage infrastructure to get breakthrough SSD performance with minimal airflow and cooling requirements.
Specifications
| Ports & interfaces | |
|---|---|
| Host interface | PCIe |
| Output interface | SAS, SATA, SFF-8654 |
| Expansion card form factor | Low-profile |
| Expansion card standard | PCIe 4.0 |
| NVMe | Yes |
| Internal mini-SAS ports | 2 |
| Design | |
| Internal | Yes |
| Product colour | Black, Green, Silver |
| Mean time between failures (MTBF) | 3000000 h |
| Certification | Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020); |
| Features | |
| S.M.A.R.T. support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Power | |
| Power consumption (typical) | 20 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | SUSE Linux Enterprise Server |
| Other operating systems supported | VMware vSphere ESXi |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | RoHS, WEEE |
| Warranty period | 3 year(s) |
| Weight & dimensions | |
| Width | 155.5 mm |
| Depth | 68.8 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
